Z type rotary bucket elevator

custom

150-9515-2877/400-858-01137*24 hours hotline

Guide installation

Chauffeur pick-up

After-sales service

Product Introduction

Z-type elevator is a new type of chain bucket lifting and conveying equipment, and its unique Z-shaped structure enables it to achieve vertical and horizontal transportation of particles and powder materials in a limited space. This elevator lifts bulk materials from one plane to another through a series of hoppers fixed on a special chain. It is especially suitable for situations where vertical lifting and horizontal conveying are required at the same time, such as small, granular or powdered materials handling in food, chemical, new materials, environmental protection treatment, metallurgy, mining and other industries. It has become an indispensable important equipment in the modern production process.

Application scenario

Z-type elevator is currently widely used in various industries in the bulk of small blocks, particles, powder lifting and conveying fields, such as chemical raw materials lifting and surface delivery, recycling materials processing and upgrading, ore metal powder lifting and transportation, finished material lifting into the warehouse, material transfer between different processing stages, automatic production line recycling feed and discharge, Weighing/packing line/material supply for batching selection.

Product features

01The shell of the whole machine is closed to reduce the dust flying caused by leakage during operation and meet the requirements of environmental protection.
02Reduce material crushing feeding, conveying, unloading the whole process to reduce the damage to the granular material itself, reduce the scrap rate.
03A variety of transmission forms can be Z type, C type, ZC mixed type, one font and other use to adapt to a variety of different occasions.
04Multi-point feeding/unloading can be single point or multi-point automatic feeding adapted to a row of multiple silos.
05Uniform feed, less overflow and leakage can be matched with vibration feeder, inflow type uniform feed, reduce the overflow phenomenon.
06Space-saving layout flexible horizontal and vertical combination conveying, compact structure, small footprint, suitable for more production processes.
07Customized horizontal conveying 100 meters, vertical lifting 60 meters can meet the use of different production sites.

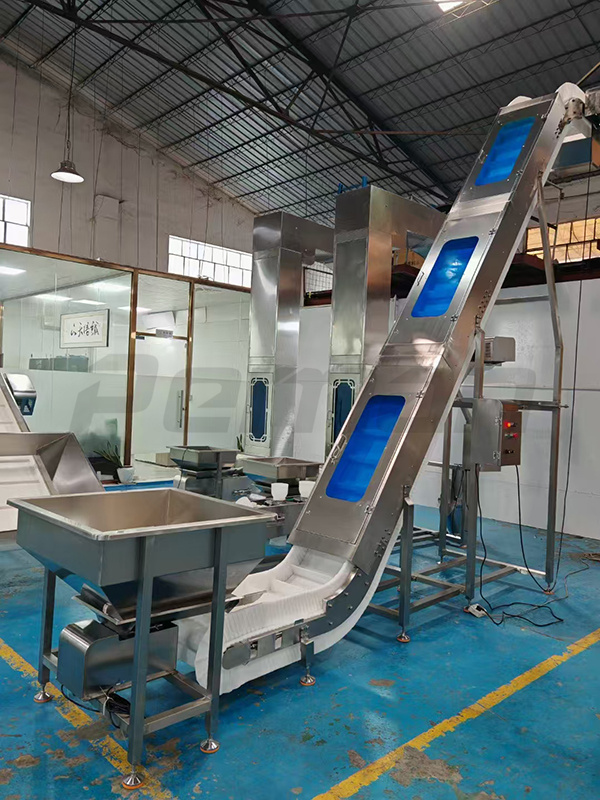

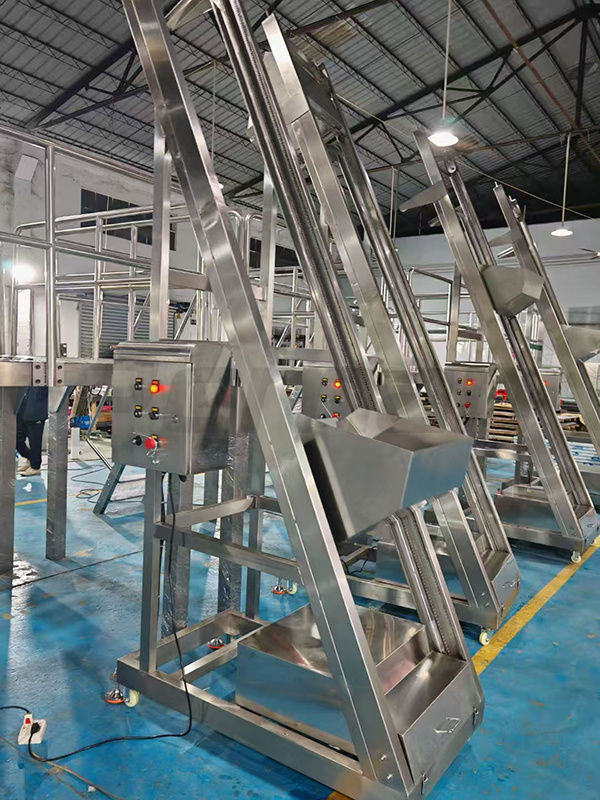

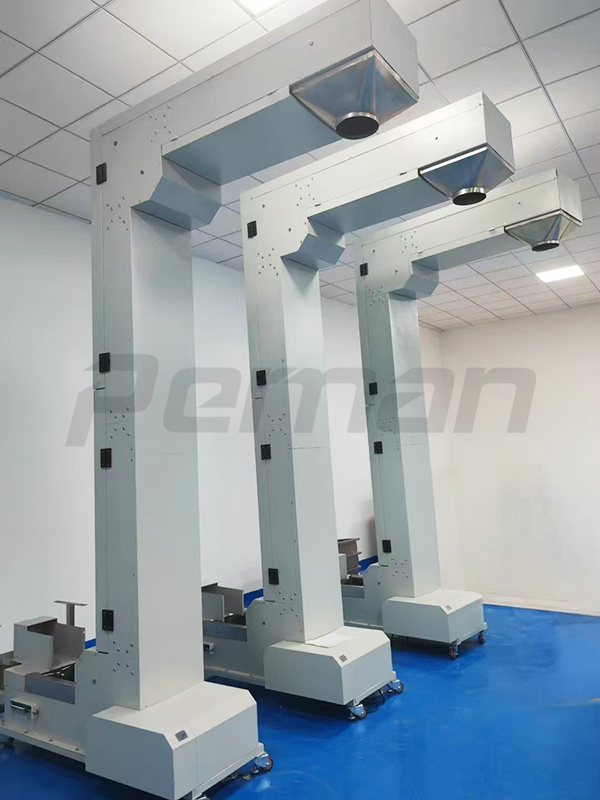

Product picture

Working principle

Z-type elevator is a kind of mechanical equipment used for conveying materials and products, mainly through the motor drive chain to drive the hopper, in the sealed shell according to the predetermined track for horizontal - vertical - horizontal (or only horizontal) lifting and conveying, the hopper mouth is always upward in this process, the material is in a static state, when the hopper reaches the position of the feeding port, Then the unloading work is completed by automatic unloading device. It is not the excavation feeding of traditional lifting and conveying equipment, but the inflow feeding method is used, and the auxiliary equipment such as vibrating cloth machine is used to achieve uniform feeding.
